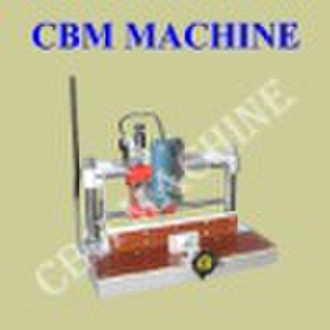

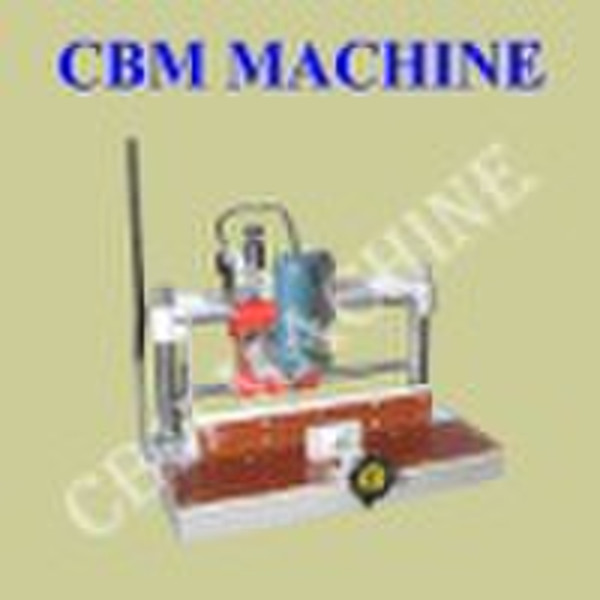

Copy Router of window machine

Technical Parameter of copy routing machine:Voltage/ frequency220V,single-phae, 50 HzInput Power550WCopy range 290×90mmMilling cutter diameterΦ5 Φ8Dimension640mm×620mm×630mmNet Weight52KGStructure FeatureFunction ExplanationThis small copy router is made up of vertical milling cutter, copy routing plate, clamping device. Controlled by the operation pole, the copy routing feeler pole moves along the hole on the copy routing plate,and drives the cutter to mill.The feeler pole has the same diameter with the milling cutter, so the machine can mill in the scale of 1 : 1,which makes the hole groove as large as the hole in the copy routing plate.This small copy router is specially used for processing water slot, pulley groove, lock-hole, hardware hole and all of other groove.With different copy routing plates,it can process grooves in different types.
