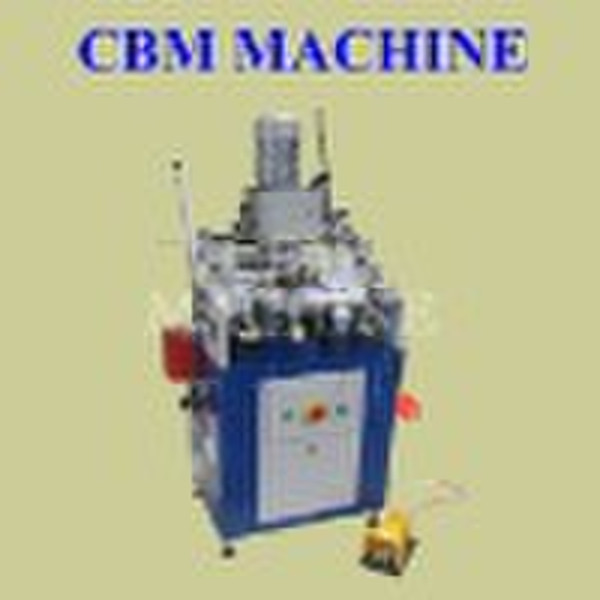

copy routing and lock hole Machine of window machi

Technical Parameter of copy routing machine:Working air pressure0.5-0.8MPaAir consumption30 L/minVoltage/ frequency380V/ 50 HzInput Power1.1+1.5 KWCopy routing range 290*90mmAdjusting range of three-hole drill330*85*100mmDiameter of milling cutter Φ5 Φ8Diameter of three-hole drillφ12Dimension870mm*1130mm*1500mmNet Weight260KG2)Structure Feature of copy routing machine: This copy routing machine is made up of three-hole drilling machine and copy routing machine. Controlled by the operation pole, the copy routing feeler pole moves along the copy routing plate in the vertical direction, which drives the milling cutter to work as per the scale of 1:1; through gear case and controlled by the feeding handle, the electric motor drives the three special-purposed drills to drill three holes in the horizontal direction at the same time.3)Function Explanation of copy routing machine: This copy routing machine is used for processing all lock-holes and other hole-grooves of PVC door and window. With different copy routing plates, the machine can process different grooves with high speed; with the aiguilles it can drill the PVC profile embedded steel. With clamping once, the machine can complete milling and drilling continuously, which can also guarantee all of the position precision. It is with high efficiency and easy operation.
