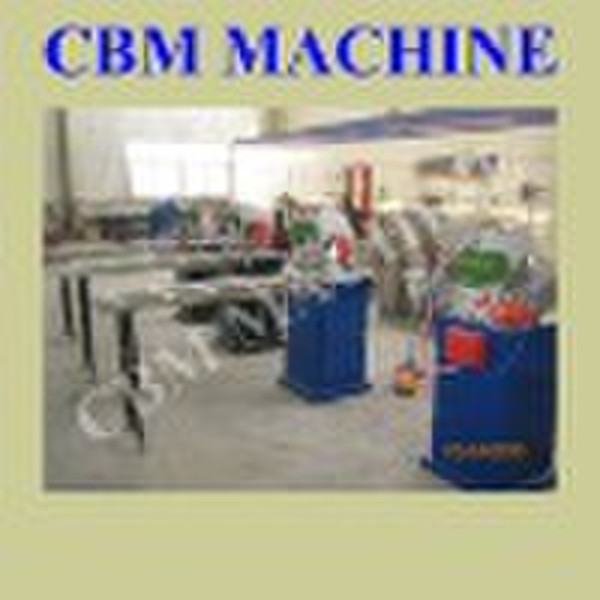

single head cutting machine of window machine

Technical Parameter of this single head cutting machine:Working air pressure0.5-0.8MPaInput Power1.5kWVoltage/ frequency380V/50 HzSaw blade diameter350mmSaw blade rotative velocity 3200 r/minMax cutting section45 angle: 120mm*100mm 90 angle: 200mm*100mm Cutting angle90,45,22.5Dimension590mm*1120mm*1400mmWeight220KGThis single head cutting machine is the special equipment used for aluminum & PVC profile cutting. Installed with material holding rack and gauge device,the machine features high location precision,automatic clamping,automatic feeding,pneumatic drive,stepless timing regulation,2-button security design,interlock control feeding,high security,advanced function and reliable quality.
