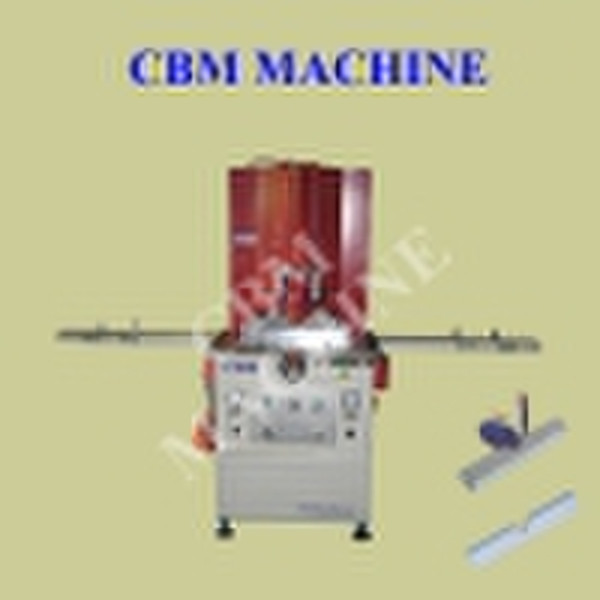

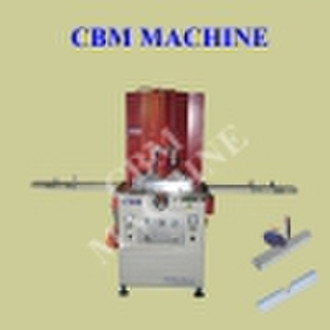

Vertical V-Notch Saw of window machine

Technical Parameter of cutting machine:Voltage/ frequency380V/50 HzWorking air pressure0.50.8MPaMotor Power3.0KW (1.5*2)Pump Power0.75KWSaw blade diameter420mmMax cutting height 120mmMax cutting width100mmCutting angle90°/ ±45°Max V shape width100mmMax V shape depth80mmMax mullion width100mmDimension900mm×910mm×1800mmNet weight850KGStructure Feature of cutting machine:Function ExplanationThis V-notch cutting machineincludes machine frame,saw head part, worktable part,supporting part,hydromatic system,pneumatic system and electric system. The saw head is made up of two pieces of saw blade and two crossed motors,The saw head run vertically from up to down.The worktable can move forward and return horizontally.This machine can finish high precise cutting for V-shape,middle-mullion and fixed length. This machine is the main equipment for cutting V-shape,middle-mullion and it also can finish
